详细介绍

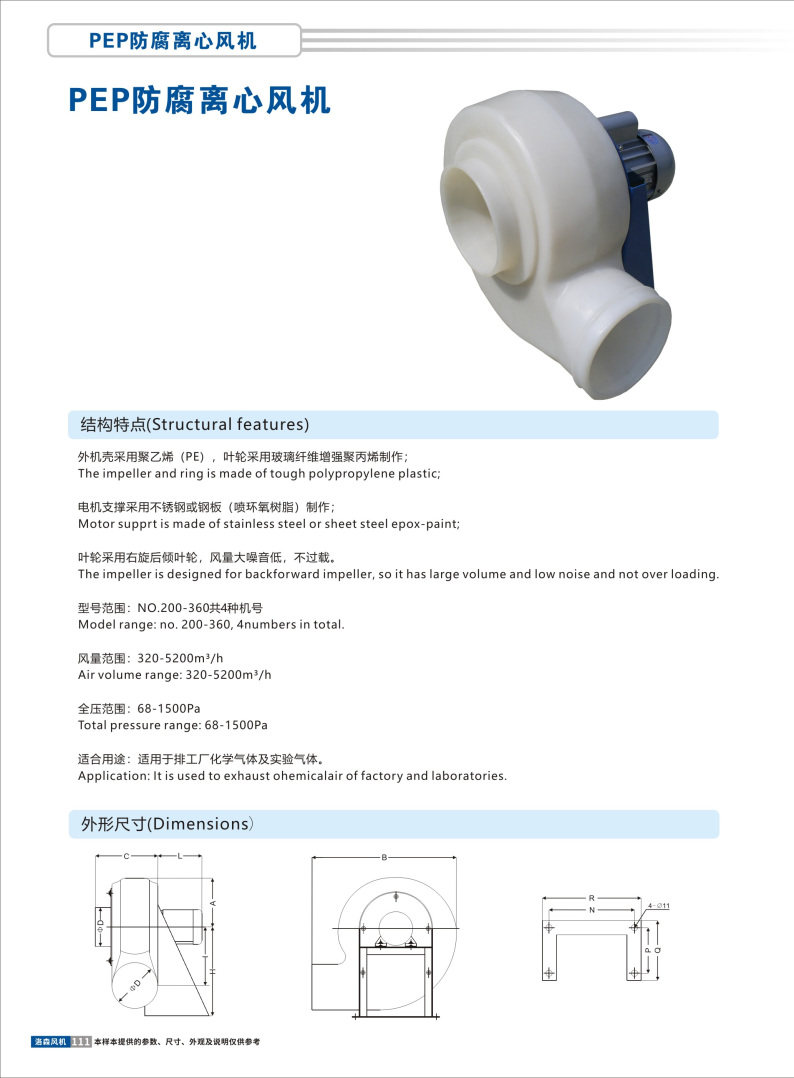

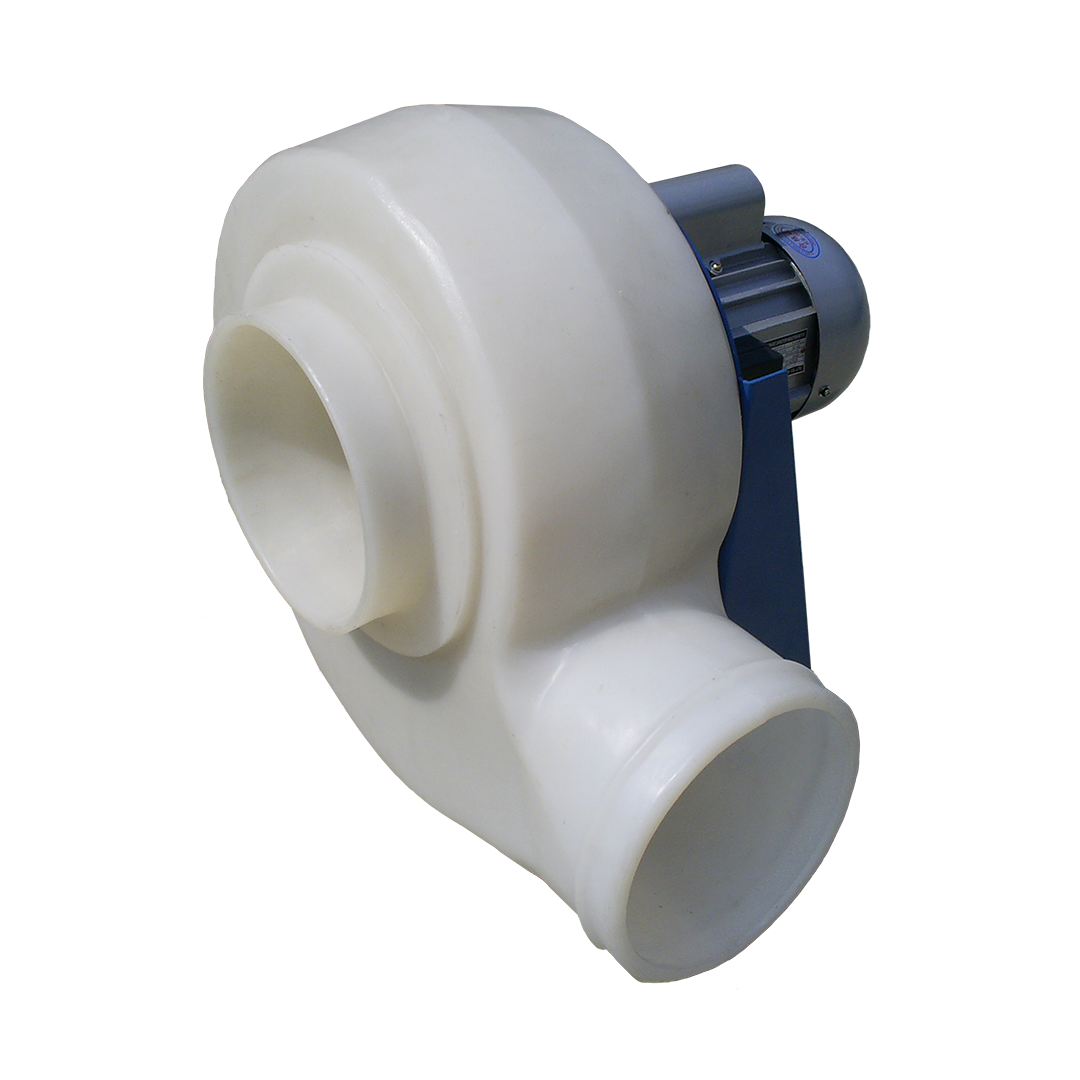

PEP防腐离心风机
结构特点:
Structural features:
外机壳采用聚乙烯(PE),叶轮采用玻璃纤维增强聚丙烯制作;
The impeller and ring is made of tough polypropylene plastic;
电机支撑采用不锈钢或钢板(喷环氧树脂)制作;
Motor supprt is made of stainless steel or sheet steel epox-paint;
叶轮采用右旋后倾叶轮,风量大噪音低,不过载。
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading.
型号范围:NO.200-360共4种机号
Model range: no. 200-360, 4numbers in total.
风量范围:320-5200m3/h
Air volume range: 320-5200m3/h
全压范围:68-1500Pa
Total pressure range: 68-1500Pa
适合用途:适用于排工厂化学气体及实验气体。
Application: It is used to exhaust ohemicalair of factory and laboratories.
