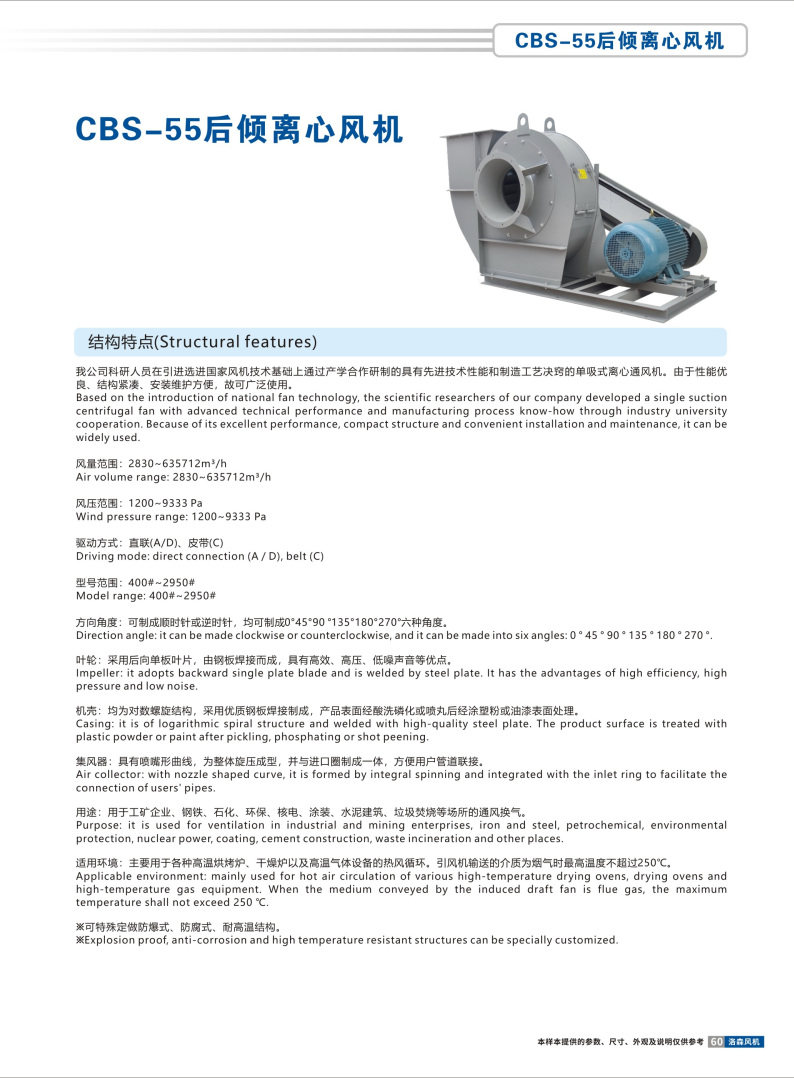

CBS-55后倾离心风机

我公司科研人员在引进选进国家风机技术基础上通过产学合作研制的具有先进技术性能和制造工艺决窍的单吸式离心通风机。由于性能优良、结构紧凑、安装维护方便，故可广泛使用。

Based on the introduction of national fan technology, the scientific researchers of our company developed a single suction centrifugal fan with advanced technical performance and manufacturing process know-how through industry university cooperation. Because of its excellent performance, compact structure and convenient installation and maintenance, it can be widely used.

风量范围：2830~635712m3/h

Air volume range: 2830~635712m3/h

风压范围：1200~9333 Pa

Wind pressure range: 1200~9333 Pa

驱动方式：直联(A/D)、皮带(C)

Driving mode: direct connection (A / D), belt (C)

型号范围：400#~2950#

Model range: 400#~2950#

方向角度：可制成顺时针或逆时针，均可制成0°45°90 °135°180°270°六种角度。

Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.

叶轮：采用后向单板叶片，由钢板焊接而成，具有高效、高压、低噪声音等优点。

Impeller: it adopts backward single plate blade and is welded by steel plate. It has the advantages of high efficiency, high pressure and low noise.

机壳：均为对数螺旋结构，采用优质钢板焊接制成，产品表面经酸洗磷化或喷丸后经涂塑粉或油漆表面处理。

Casing: it is of logarithmic spiral structure and welded with high-quality steel plate. The product surface is treated with plastic powder or paint after pickling, phosphating or shot peening.

集风器：具有喷嘴形曲线，为整体旋压成型，并与进口圈制成一体，方便用户管道联接。

Air collector: with nozzle shaped curve, it is formed by integral spinning and integrated with the inlet ring to facilitate the connection of users' pipes.

用途：用于工矿企业、钢铁、石化、环保、核电、涂装、水泥建筑、垃圾焚烧等场所的通风换气。

Purpose: it is used for ventilation in industrial and mining enterprises, iron and steel, petrochemical, environmental protection, nuclear power, coating, cement construction, waste incineration and other places.

适用环境：主要用于各种高温烘烤炉、干燥炉以及高温气体设备的热风循环。引风机输送的介质为烟气时最高温度不超过250℃。

Applicable environment: mainly used for hot air circulation of various high-temperature drying ovens, drying ovens and high-temperature gas equipment. When the medium conveyed by the induced draft fan is flue gas, the maximum temperature shall not exceed 250 ℃.

※可特殊定做防爆式、防腐式、耐高温结构。

※Explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
