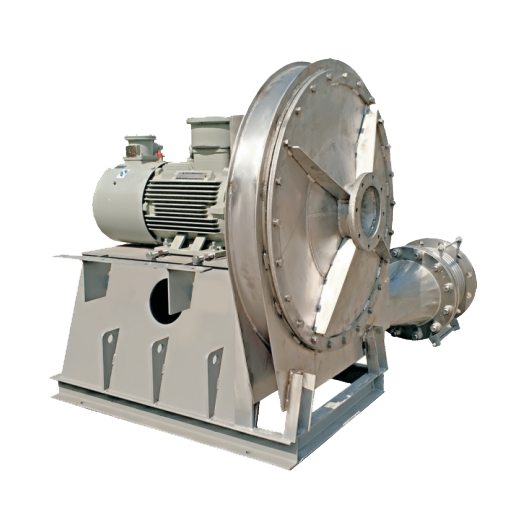

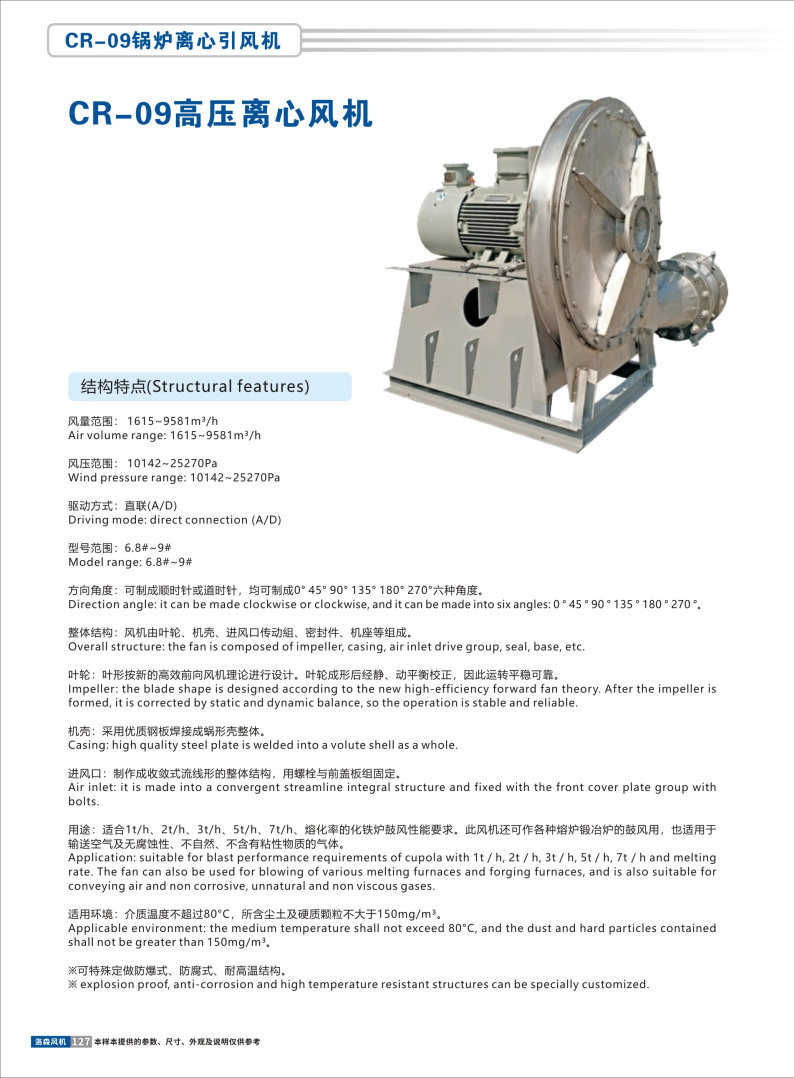

CR-09高压离心风机

风量范围： 1615~9581m3/h

Air volume range: 1615~9581m3/h

风压范围： 10142~25270Pa

Wind pressure range: 10142~25270Pa

驱动方式：直联(A/D)

Driving mode: direct connection (A/D)

型号范围：6.8#~9#

Model range: 6.8#~9#

方向角度：可制成顺时针或道时针，均可制成0° 45° 90° 135° 180° 270°六种角度。

Direction angle: it can be made clockwise or clockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.

整体结构：风机由叶轮、机壳、进风口传动組、密封件、机座等组成。

Overall structure: the fan is composed of impeller, casing, air inlet drive group, seal, base, etc.

叶轮：叶形按新的高效前向风机理论进行设计。叶轮成形后经静、动平衡校正，因此运转平稳可靠。

Impeller: the blade shape is designed according to the new high-efficiency forward fan theory. After the impeller is formed, it is corrected by static and dynamic balance, so the operation is stable and reliable.

机壳：采用优质钢板焊接成蜗形壳整体。

Casing: high quality steel plate is welded into a volute shell as a whole.

进风口：制作成收敛式流线形的整体结构，用螺栓与前盖板组固定。

Air inlet: it is made into a convergent streamline integral structure and fixed with the front cover plate group with bolts.

用途：适合1t/h、 2t/h、3t/h、5t/h、7t/h、熔化率的化铁炉鼓风性能要求。此风机还可作各种熔炉锻冶炉的鼓风用，也适用于输送空气及无腐蚀性、不自然、不含有粘性物质的气体。

Application: suitable for blast performance requirements of cupola with 1t / h, 2t / h, 3t / h, 5t / h, 7t / h and melting rate. The fan can also be used for blowing of various melting furnaces and forging furnaces, and is also suitable for conveying air and non corrosive, unnatural and non viscous gases.

适用环境：介质温度不超过80°C，所含尘土及硬质颗粒不大于150mg/m3。

Applicable environment: the medium temperature shall not exceed 80 ° C, and the dust and hard particles contained shall not be greater than 150mg / m3.

※可特殊定做防爆式、防腐式、耐高温结构。

※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
