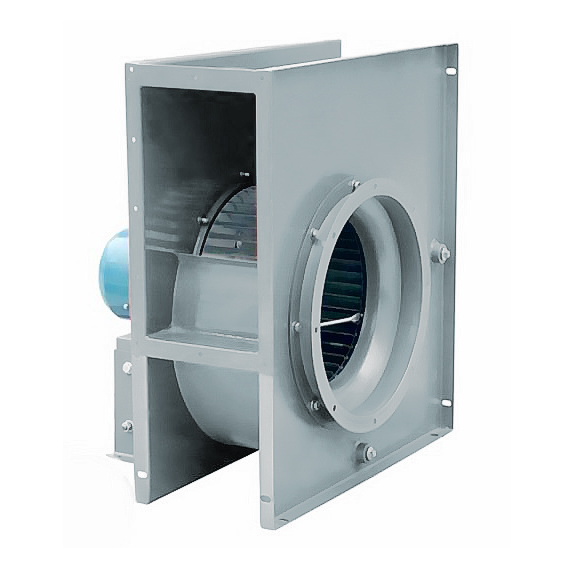

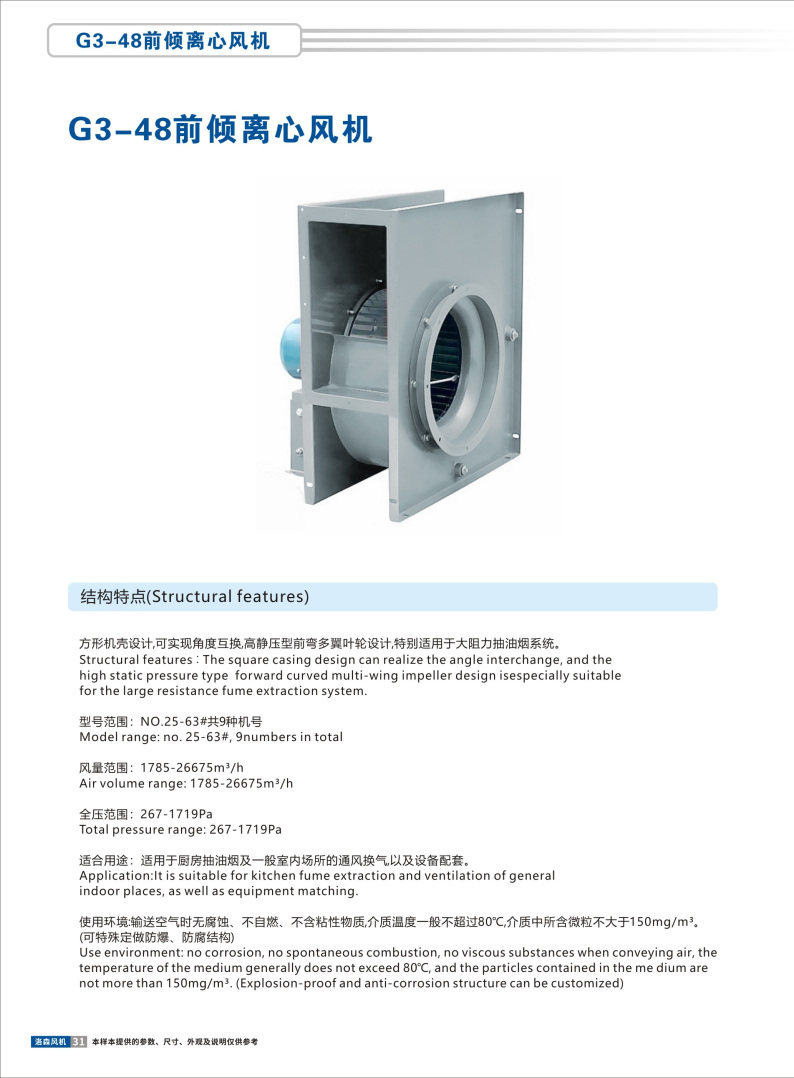

G3-48前倾离心风机

结构特点：方形机壳设计,可实现角度互换,高静压型前弯多翼叶轮设计,特别适用于大阻力抽油烟系统。

Structural features：The square casing design can realize the angle interchange, and the high static pressure type forward curved multi-wing impeller design is especially suitable for the large resistance fume extraction system.

型号范围：NO.25-63#共9种机号

Model range: no. 25-63#, 9numbers in total

风量范围：1785-26675m3/h

Air volume range: 1785-26675m3/h

全压范围：267-1719Pa

Total pressure range: 267-1719Pa

适合用途：适用于厨房抽油烟及一般室内场所的通风换气,以及设备配套。

Application:It is suitable for kitchen fume extraction and ventilation of general indoor places, as well as equipment matching.

使用环境:输送空气时无腐蚀、不自燃、不含粘性物质,介质温度一般不超过80%℃,介质中所含微粒不大于150mg/m3。(可特殊定做防爆、防腐结构)

Use environment: no corrosion, no spontaneous combustion, no viscous substances when conveying air, the temperature of the medium generally does not exceed 80%℃, and the particles contained in the medium are not more than 150mg/m3. (Explosion-proof and anti-corrosion structure can be customized)
