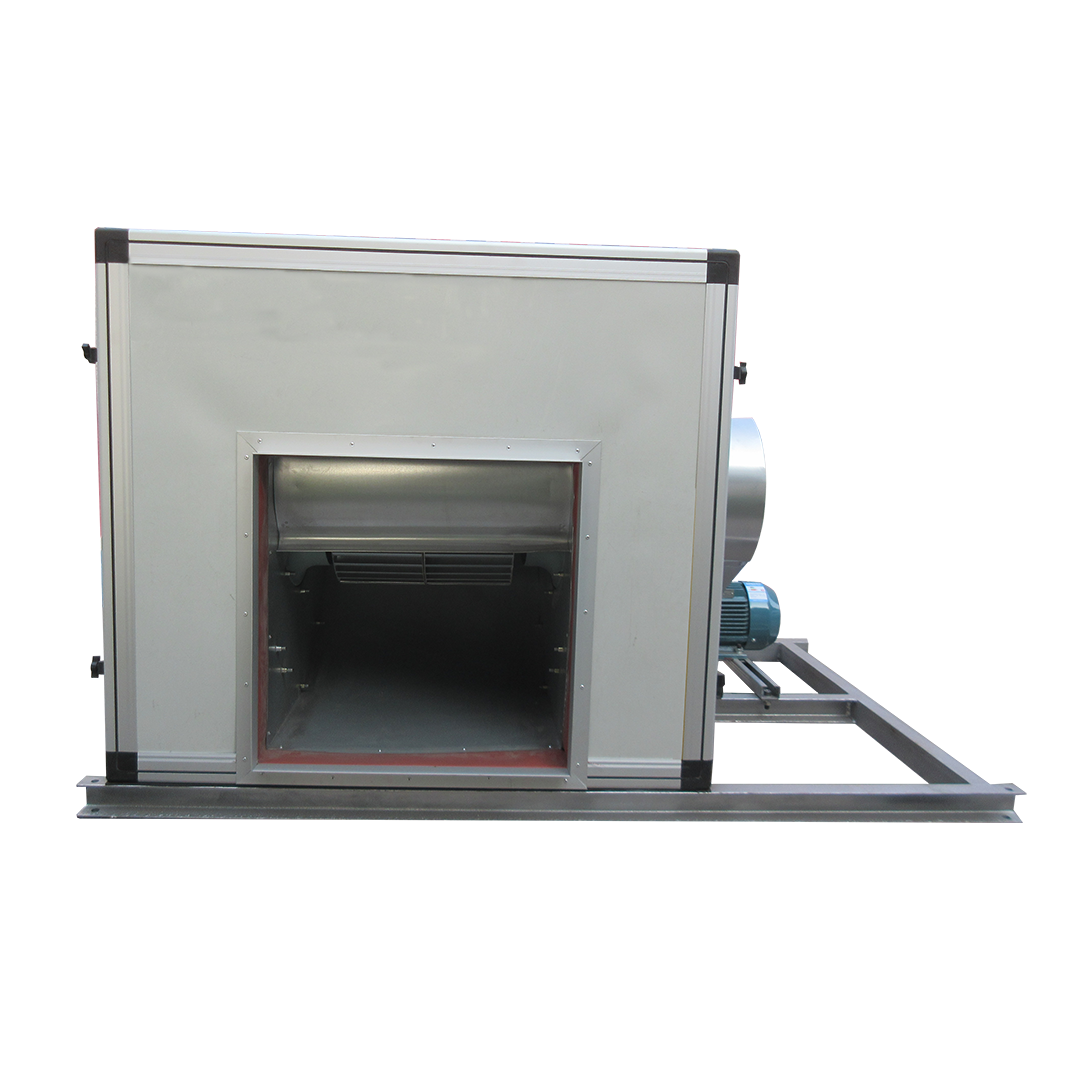

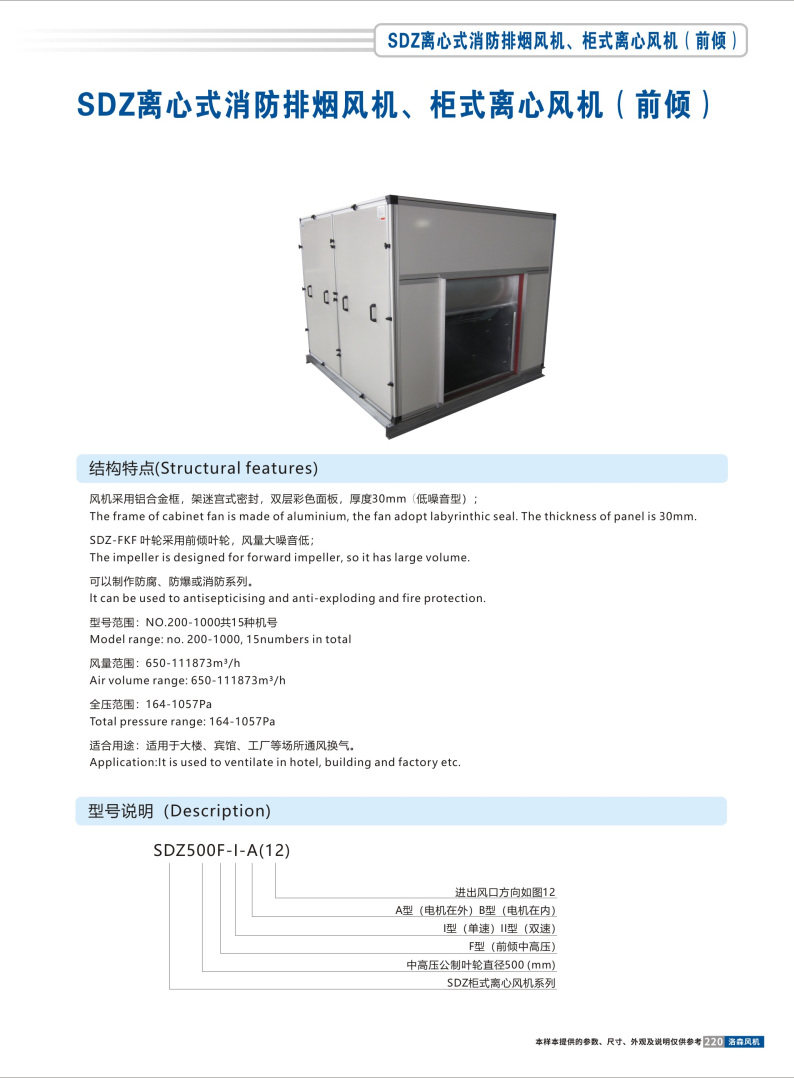

SDZ离心式消防排烟风机/柜式离心风机(前倾)
结构特点:
Structural features:
风机采用铝合金框,架迷宫式密封,双层彩色面板,厚度30mm(低噪音型);
The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal. The thickness of panel is 30mm.
SDZ-FKF 叶轮采用前倾叶轮,风量大噪音低;
The impeller is designed for forward impeller, so it has large volume.
可以制作防腐、防爆或消防系列。
lt can be used to antisepticising and anti-exploding and fire protection.
型号范围:NO.200-1000共15种机号
Model range: no. 200-1000, 15numbers in total
风量范围:650-111873m3/h
Air volume range: 650-111873m3/h
全压范围:164-1057Pa
Total pressure range: 164-1057Pa
适合用途:适用于大楼、宾馆、工厂等场所通风换气。
Application:It is used to ventilate in hotel, building and factory etc.
