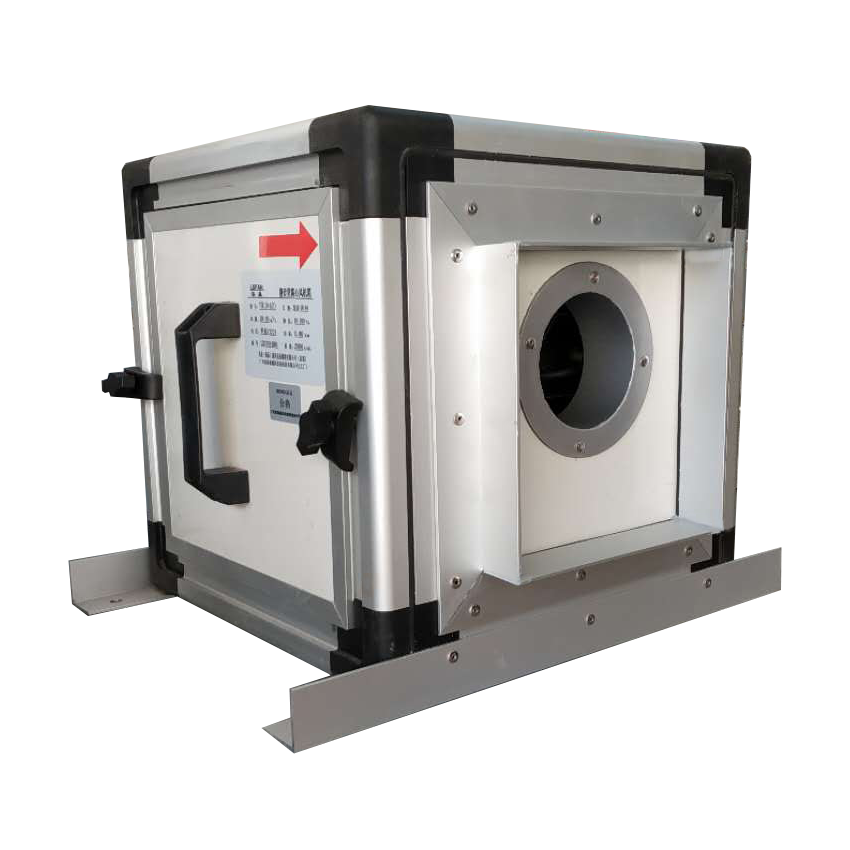

TSR静音离心风机箱

结构特点：

Structural features：

风机为电机直联；

It is designed for direct connection;

叶轮采用后向叶轮，风量大噪音低，不过载；

The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;

结构紧凑，安装维护方便；

The fan is compact, so it is easy to installation and repair;

风机可在任意角度运行，静压高适宜在管道中通风。

The fan is suitable for operation at any angle and deliver exceptional airflow performances

against the high static pressures typically found in ducted ventilation systems.

型号范围：NO.100-315共10种机号

Model range: no. 100-315, 10 numbers in total

风量范围：100-2500m³/h

Air volume range: 100-2500m³/h

静压范围：70-470Pa

Static pressure range: 70-470Pa

适合用途：适用于工厂、大楼通风换气。

Application: It is suitable for ventilation in factories and buildings.
