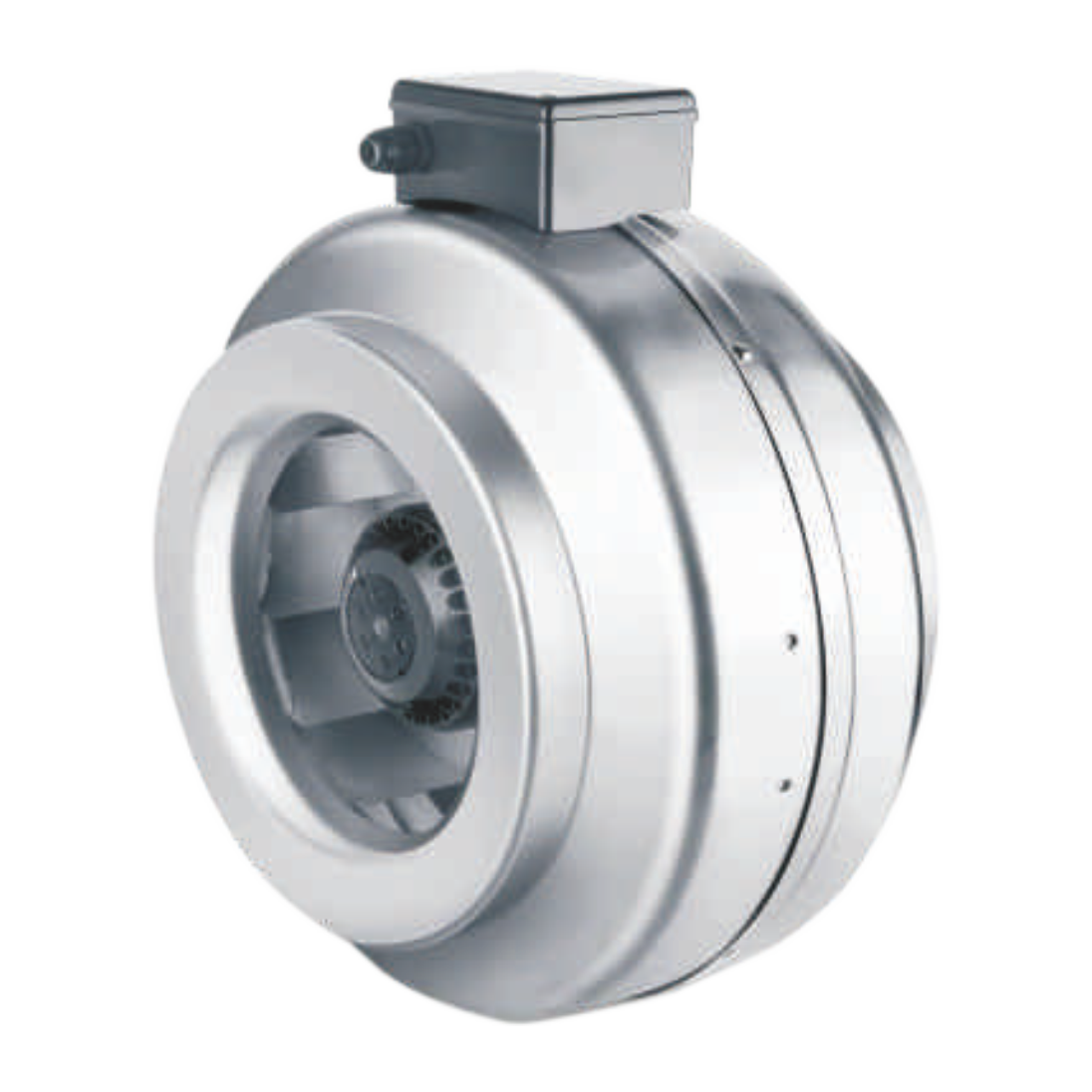

TSK圆形管道离心风机
结构特点:
Structural features:
风机为电机直联并可接标准圆管;
It is designed for direct connection in-line with stardard diameter circular ducting;
叶轮采用后向叶轮,风量大噪音低,不过载;
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;
结构紧凑,安装维护方便;
The fan is compact, so it is easy to installation and repair;
风机可在任意角度运行,静压高适宜在管道中通风。
The fan is suitable for operation at any angle and deliver exceptional airflow performances
against the high static pressures typically found in ducted ventilation systems.
型号范围:NO.100-315共7种机号
Model range: no. 100-315, 7 numbers in total
风量范围:67-1680m³/h
Air volume range: 67-1680m³/h
全压范围:52-498Pa
Total pressure range: 52-498Pa
适合用途:适用于工厂、大楼通风换气。
Application: It is suitable for ventilation in factories and buildings.
