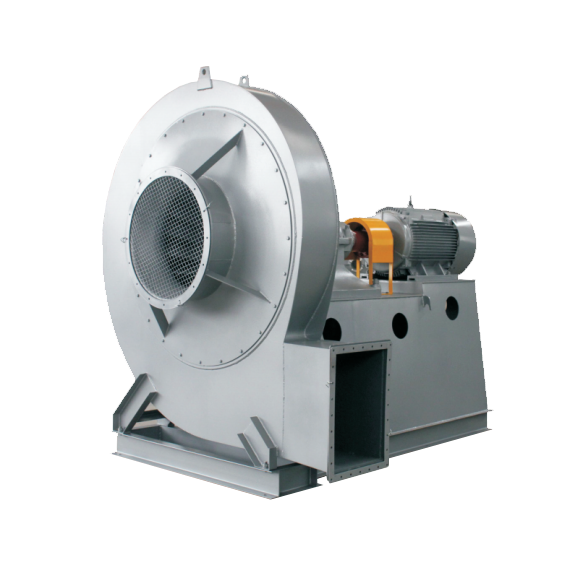

CR-29高压离心风机

此类型风机具有效率高、能耗低，是目前国内在高压风机中较理想的风机。

This type of fan has high efficiency and low energy consumption. It is an ideal fan among high-pressure fans in China.

风量范围： 2500~ 82191m3/h

Air volume range: 2500~ 82191m3/h

风压范围：3659~13062Pa

Wind pressure range: 3659~13062Pa

驱动方式：直联(A/D)皮带(C)

Driving mode: direct connection (A / D), belt (C)

型号范围：5.5#~17.5#

Model range: 5.5#~17.5#

方向角度：可制成顺时针或道时针，均可制成0° 45° 90° 135° 180° 270°六种角度。

Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.

整体结构： C式风机主要由叶轮、机壳、进风口、传动部分、支架等组成 ；A式风机由风机和电动机直接连接。

Overall structure: type C fan is mainly composed of impeller, casing, air inlet, transmission part, support, etc; Type a fan is directly connected by fan and motor.

叶轮：由12个后向、锥形、单圆弧等厚叶片，与锥形前盘和平板形后盘组成，叶轮制造完成后经静、动平衡校正，

空气性能良好，效率高、运转平稳、安全可靠。

Impeller: it is composed of 12 backward, conical and single circular arc blades with equal thickness, conical front disc and flat plate rear disc. After the impeller is manufactured, it is corrected by static and dynamic balance. It has good air performance, high efficiency, stable operation, safety and reliability.

进风口：它是装于风机的侧面整体焊接件，与轴向平行的截面为前锥形后接曲线奖，能使气体损失较小地顺利进入叶轮。

Air inlet: it is an integral weldment installed on the side of the fan. The section parallel to the axial direction is a front cone followed by a curve, which can make the gas enter the impeller smoothly with less loss.

机壳：采用优质钢板焊接成蜗壳形的整体。

Casing: high quality steel plate is welded into a volute shaped whole.

用途：适用于输送、吸引空气,以及输送无腐蚀性、不自然、不含有粘性物质的气体。尤其适用于棉线加工输送,也可以用于冲天炉吹炼。

Application: suitable for transporting and attracting air, and transporting non corrosive, unnatural and non viscous gases. It is especially suitable for cotton processing and transportation, and can also be used for cupola blowing.

适用环境：输送介质的温度一般不超过80°C。介质中所含尘土及硬质颗粒不大于150mg/m3。

Applicable environment: the temperature of conveying medium generally does not exceed 80 ° C. The dust and hard particles contained in the medium shall not be greater than 150mg / m3.

※可特殊定做防爆式、防腐式、耐高温结构

※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
