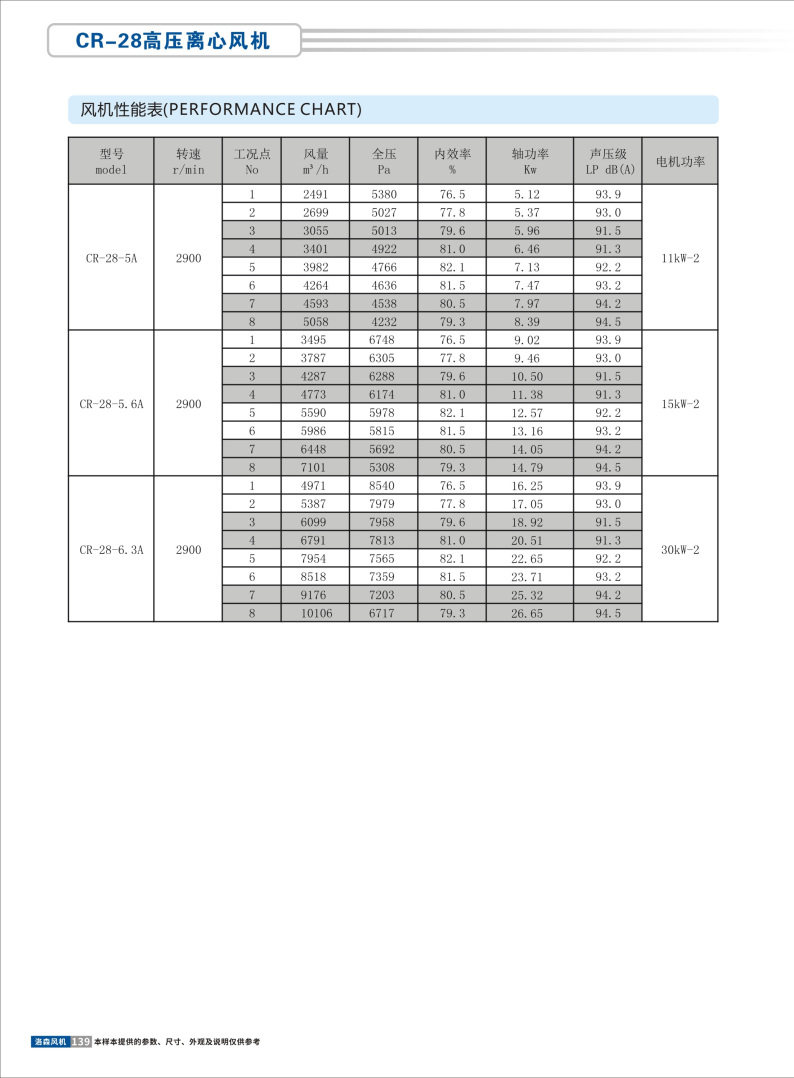

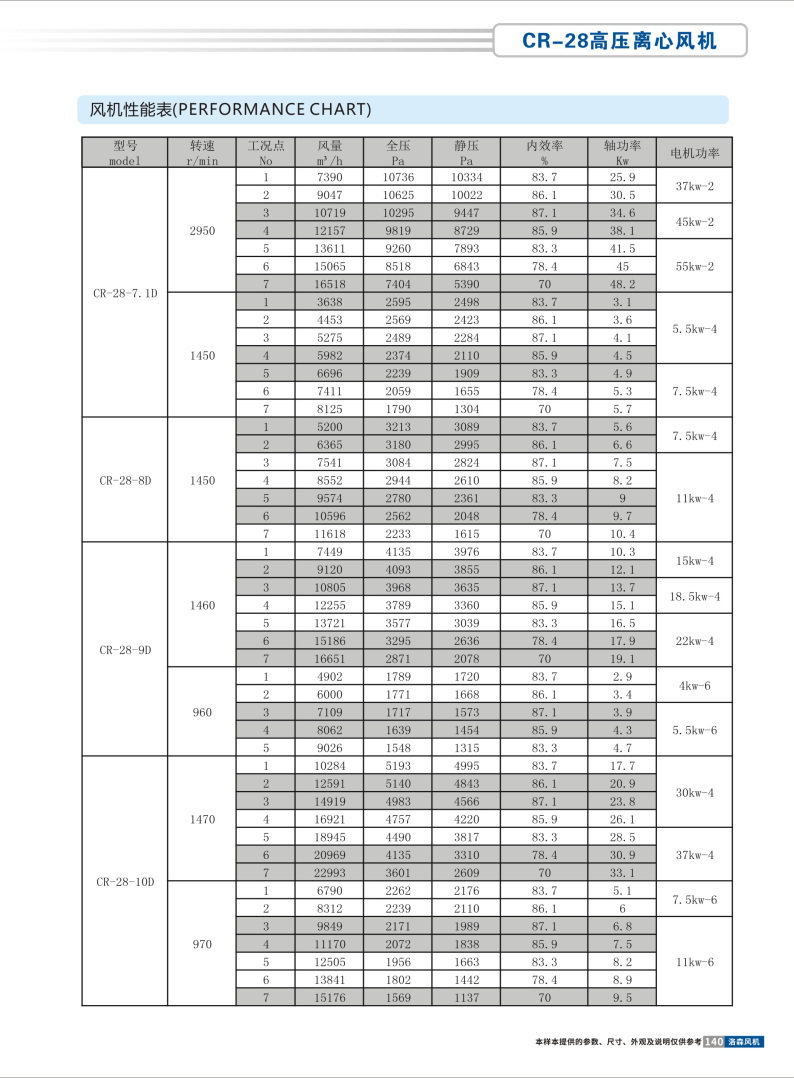

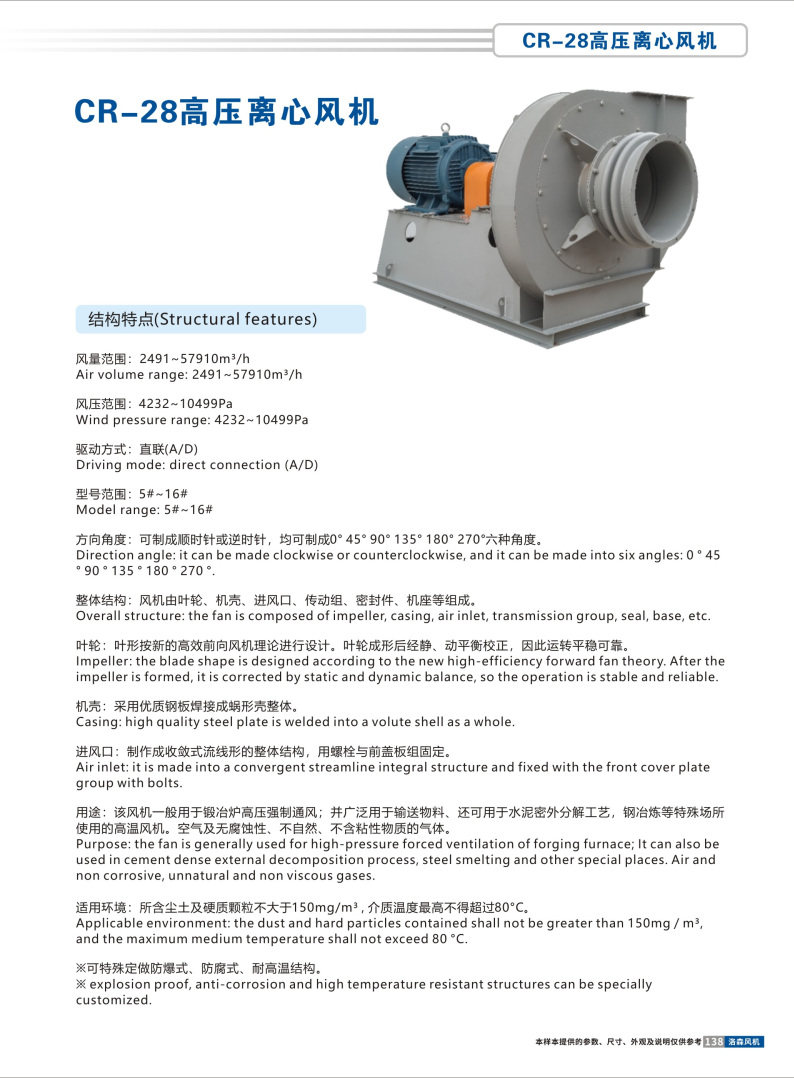

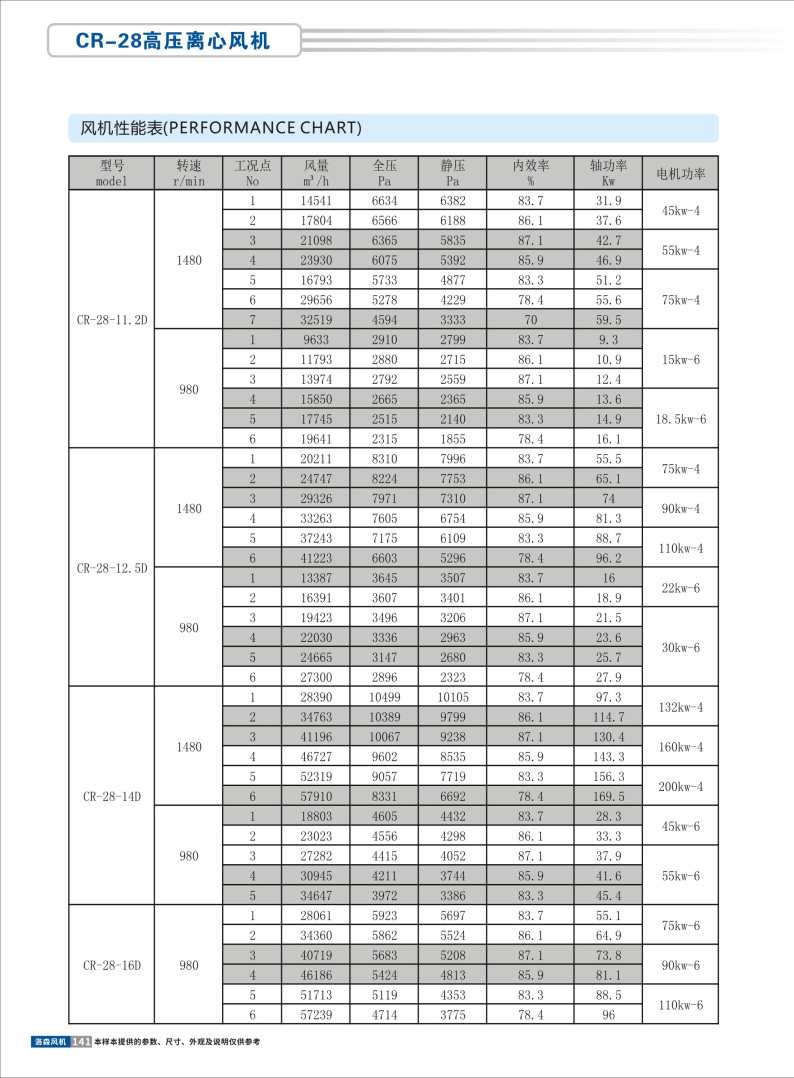

CR-28高压离心风机

风量范围： 2491~57910m3/h

Air volume range: 2491~57910m3/h

风压范围： 4232~10499Pa

Wind pressure range: 4232~10499Pa

驱动方式：直联(A/D)

Driving mode: direct connection (A/D)

型号范围：5#~16#

Model range: 5#~16#

方向角度：可制成顺时针或逆时针，均可制成0° 45° 90° 135° 180° 270°六种角度。

Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.

整体结构：风机由叶轮、机壳、进风口、传动组、密封件、机座等组成。

Overall structure: the fan is composed of impeller, casing, air inlet, transmission group, seal, base, etc.

叶轮：叶形按新的高效前向风机理论进行设计。叶轮成形后经静、动平衡校正，因此运转平稳可靠。

Impeller: the blade shape is designed according to the new high-efficiency forward fan theory. After the impeller is formed, it is corrected by static and dynamic balance, so the operation is stable and reliable.

机壳：采用优质钢板焊接成蜗形壳整体。

Casing: high quality steel plate is welded into a volute shell as a whole.

进风口：制作成收敛式流线形的整体结构，用螺栓与前盖板组固定。

Air inlet: it is made into a convergent streamline integral structure and fixed with the front cover plate group with bolts.

用途：该风机一般用于锻冶炉高压强制通风；并广泛用于输送物料、还可用于水泥密外分解工艺，钢冶炼等特殊场所使用的高温风机。空气及无腐蚀性、不自然、不含粘性物质的气体。

Purpose: the fan is generally used for high-pressure forced ventilation of forging furnace; It can also be used in cement dense external decomposition process, steel smelting and other special places. Air and non corrosive, unnatural and non viscous gases.

适用环境：所含尘土及硬质颗粒不大于150mg/m3，介质温度最高不得超过80°C。

Applicable environment: the dust and hard particles contained shall not be greater than 150mg / m3, and the maximum medium temperature shall not exceed 80 ° C.

※可特殊定做防爆式、防腐式、耐高温结构。

※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
