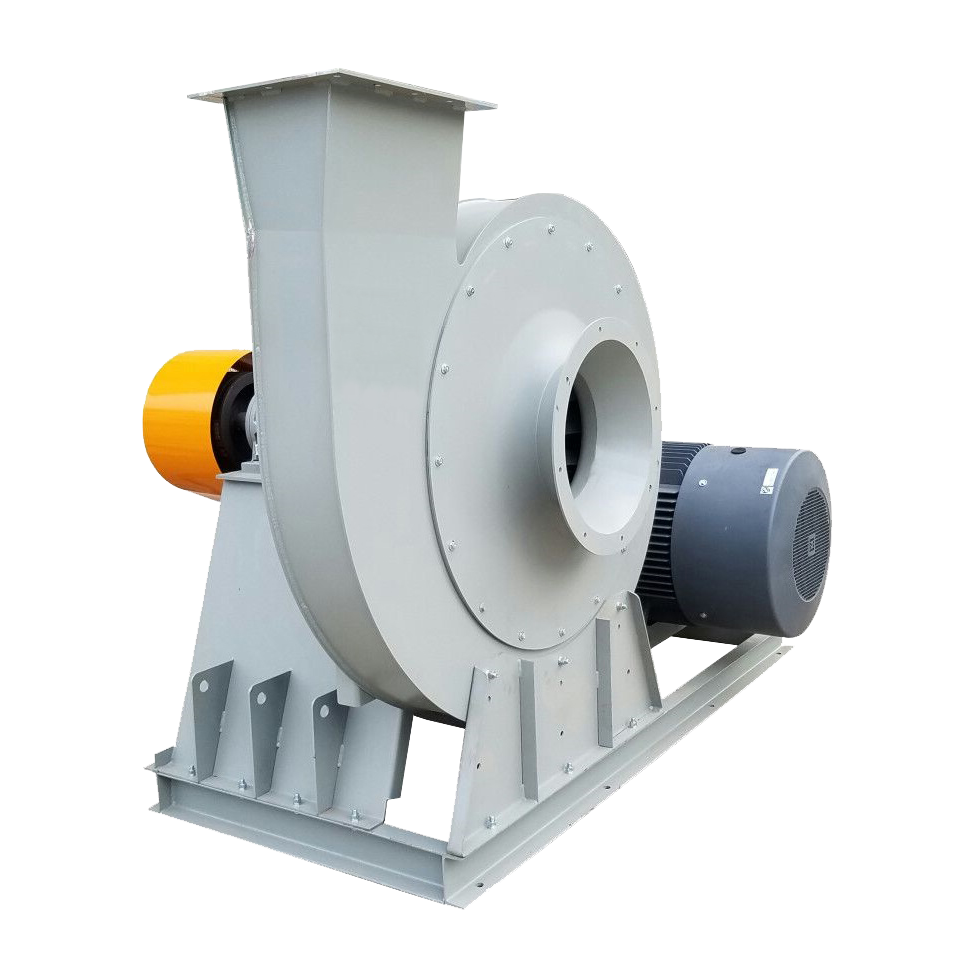

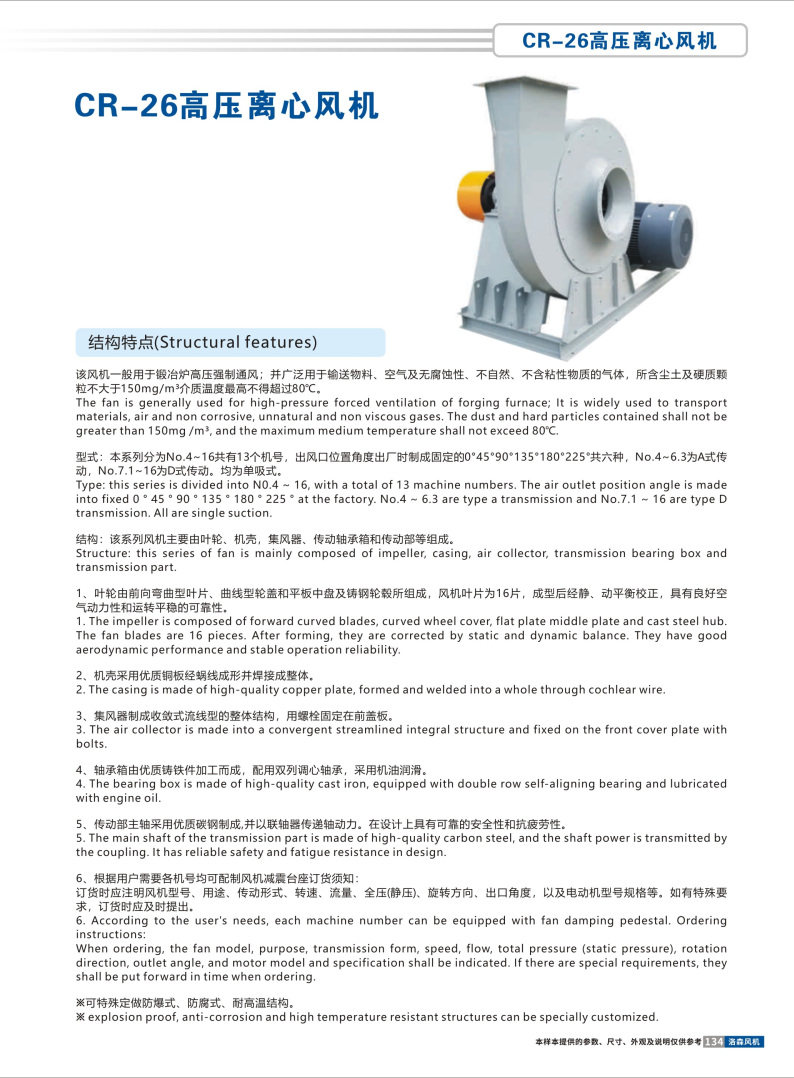

CR-26高压离心风机

该风机一般用于锻冶炉高压强制通风；并广泛用于输送物料、空气及无腐蚀性、不自然、不含粘性物质的气体，所含尘土及硬质颗粒不大于150mg/m3介质温度最高不得超过80℃。

The fan is generally used for high-pressure forced ventilation of forging furnace; It is widely used to transport materials, air and non corrosive, unnatural and non viscous gases. The dust and hard particles contained shall not be greater than 150mg / m3, and the maximum medium temperature shall not exceed 80 ℃.

型式：本系列分为N0.4~16共有13个机号，出风口位置角度出厂时制成固定的0°45°90°135°180°225°共六种，No,4~6.3为A式传动， No.7.1~16为D式传动。 均为单吸式。

Type: this series is divided into N0.4 ~ 16, with a total of 13 machine numbers. The air outlet position angle is made into fixed 0 ° 45 ° 90 ° 135 ° 180 ° 225 ° at the factory. No, 4 ~ 6.3 are type a transmission and no.7.1 ~ 16 are type D transmission. All are single suction.

结构：该系列风机主要由叶轮、机壳，集风器、传动轴承箱和传动部等组成。

Structure: this series of fan is mainly composed of impeller, casing, air collector, transmission bearing box and transmission part.

1、叶轮由前向弯曲型叶片、曲线型轮盖和平板中盘及铸钢轮毂所组成，风机叶片为16片，成型后经静、动平衡校正，具有良好空气动力性和运转平稳的可靠性。

1. The impeller is composed of forward curved blades, curved wheel cover, flat plate middle plate and cast steel hub. The fan blades are 16 pieces. After forming, they are corrected by static and dynamic balance. They have good aerodynamic performance and stable operation reliability.

2、机壳采用优质铜板经蜗线成形并焊接成整体。

2. The casing is made of high-quality copper plate, formed and welded into a whole through cochlear wire.

3、集风器制成收敛式流线型的整体结构，用螺栓固定在前盖板。

3. The air collector is made into a convergent streamlined integral structure and fixed on the front cover plate with bolts.

4、轴承箱由优质铸铁件加工而成，配用双列调心轴承，采用机油润滑。

4. The bearing box is made of high-quality cast iron, equipped with double row self-aligning bearing and lubricated with engine oil.

5、传动部主轴采用优质碳钢制成,并以联轴器传递轴动力。在设计上具有可靠的安全性和抗疲劳性。

5. The main shaft of the transmission part is made of high-quality carbon steel, and the shaft power is transmitted by the coupling. It has reliable safety and fatigue resistance in design.

6、根据用户需要各机号均可配制风机减震台座订货须知：

订货时应注明风机型号、用途、传动形式、转速、流量、全压(静压)、旋转方向、出口角度，以及电动机型号规格等。如有特殊要求，订货时应及时提出。

6. According to the user's needs, each machine number can be equipped with fan damping pedestal. Ordering instructions:

When ordering, the fan model, purpose, transmission form, speed, flow, total pressure (static pressure), rotation direction, outlet angle, and motor model and specification shall be indicated. If there are special requirements, they shall be put forward in time when ordering.

※可特殊定做防爆式、防腐式、耐高温结构。

※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
