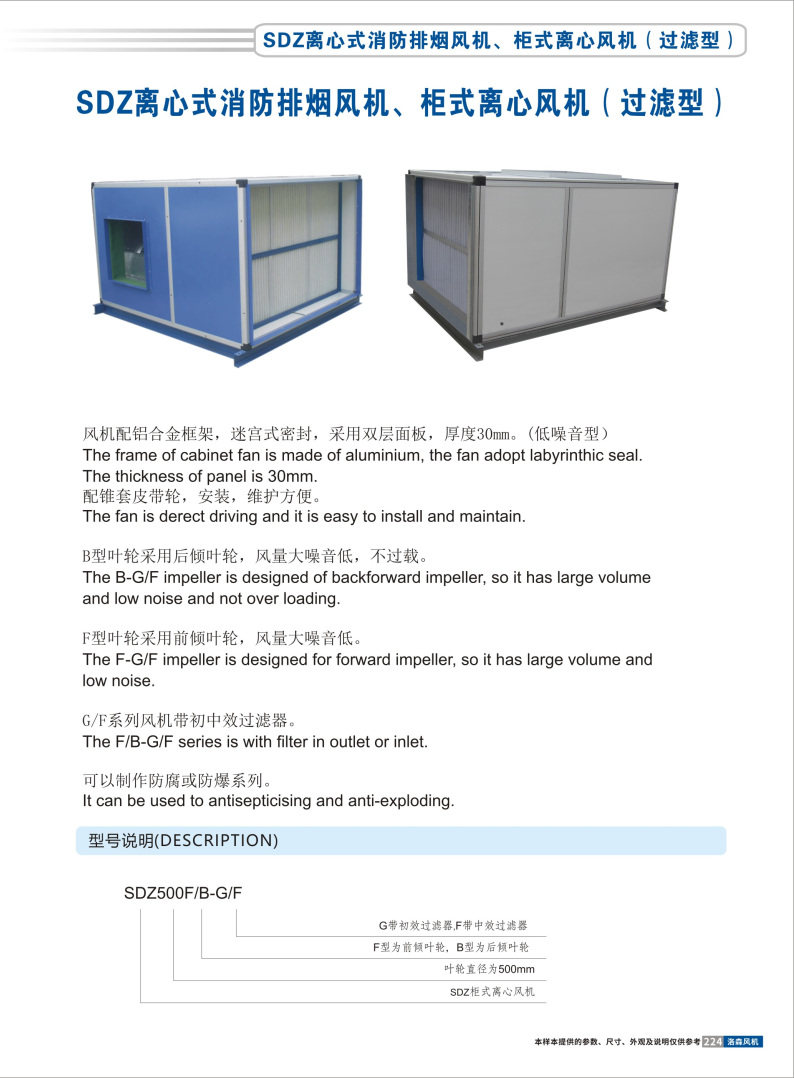

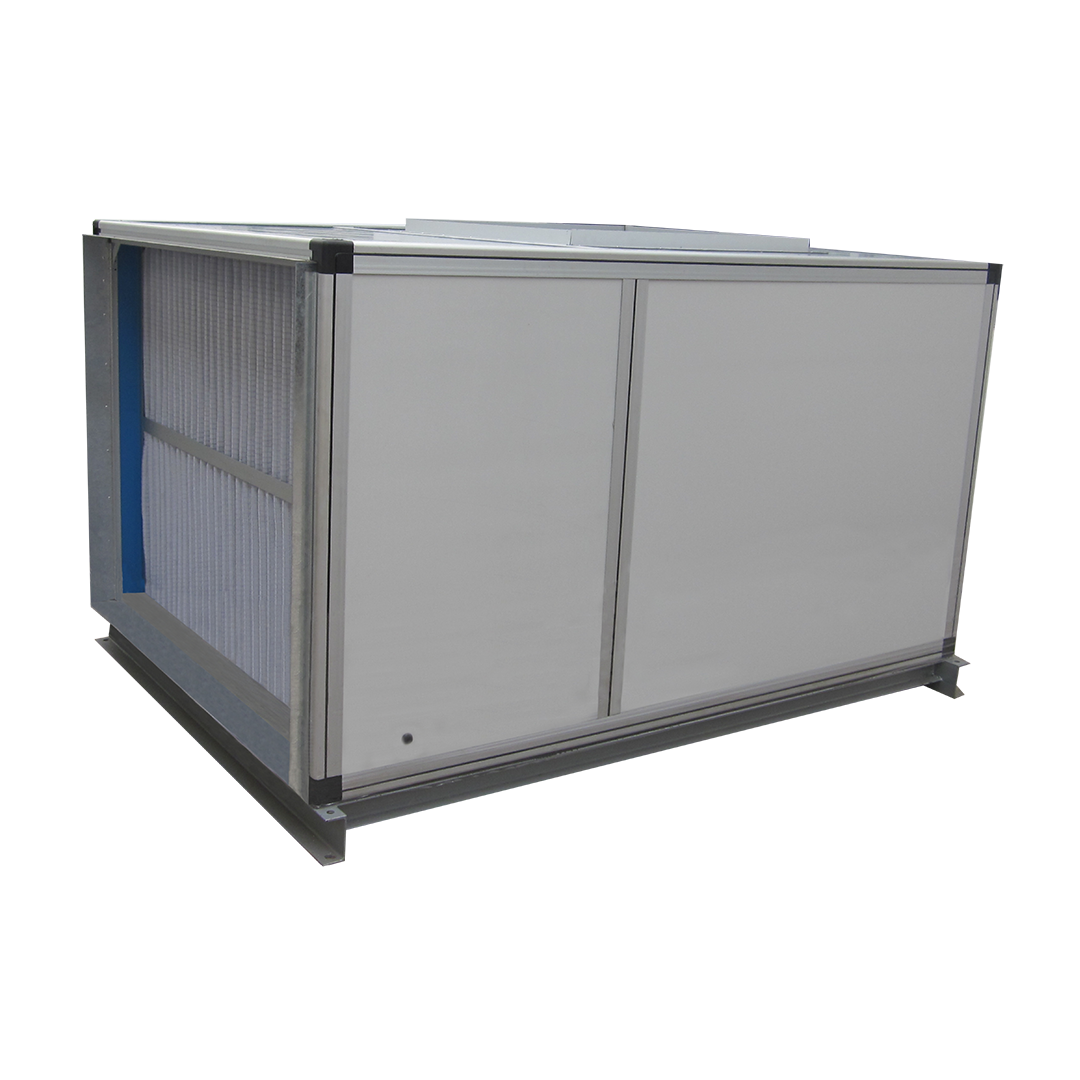

SDZ柜式离心风机（过滤型）

风机配铝合金框架，迷宫式密封，采用双层面板，厚度30mm。(低噪音型)

The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal.The thickness of panel is 30mm.

配锥套皮带轮，安装,维护方便。

The fan is derect driving and it is easy to install and maintain.

B型叶轮采用后倾叶轮，风量大噪音低，不过载。

The B-G/F impeller is designed of back forward impeller, so it has large volume and low noise and not over loading.

F型叶轮采用前倾叶轮，风量大噪音低。

The F-G/F impeller is designed for forward impeller, so it has large volume and low noise.

G/F系列风机带初中效过滤器。

The F/B-G/F series is with filter in outlet or inlet.

可以制作防腐或防爆系列。

lt can be used to antisepticising and anti-exploding.
