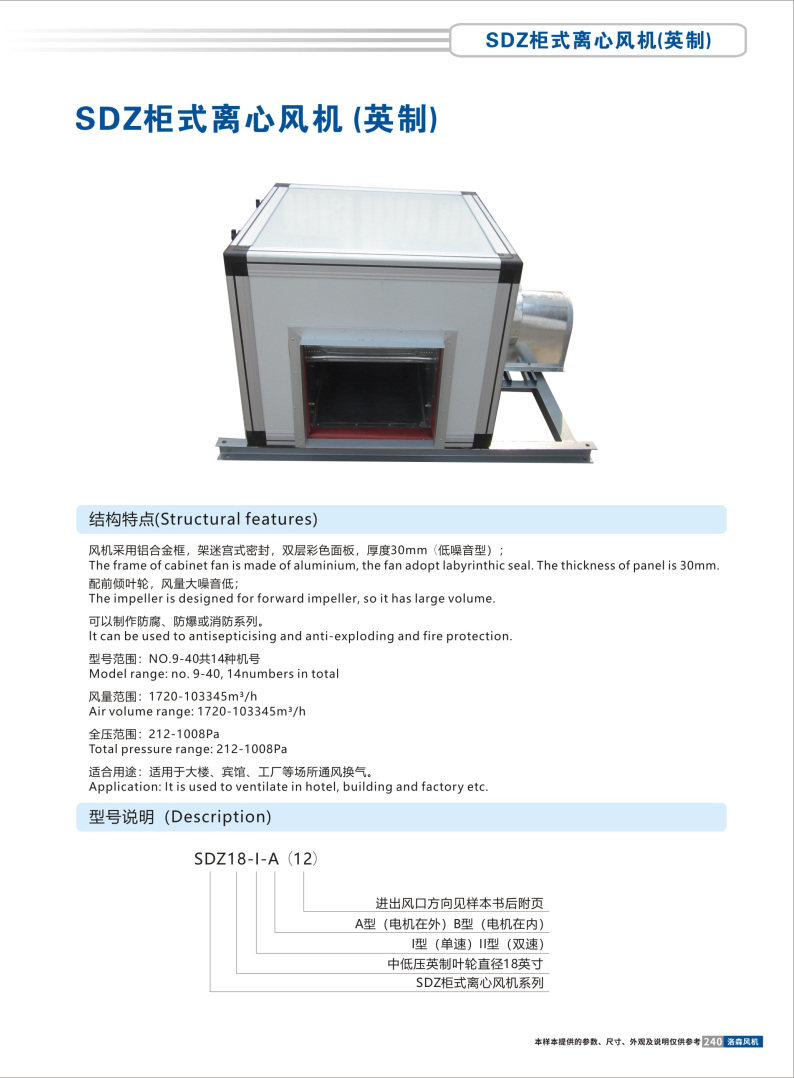

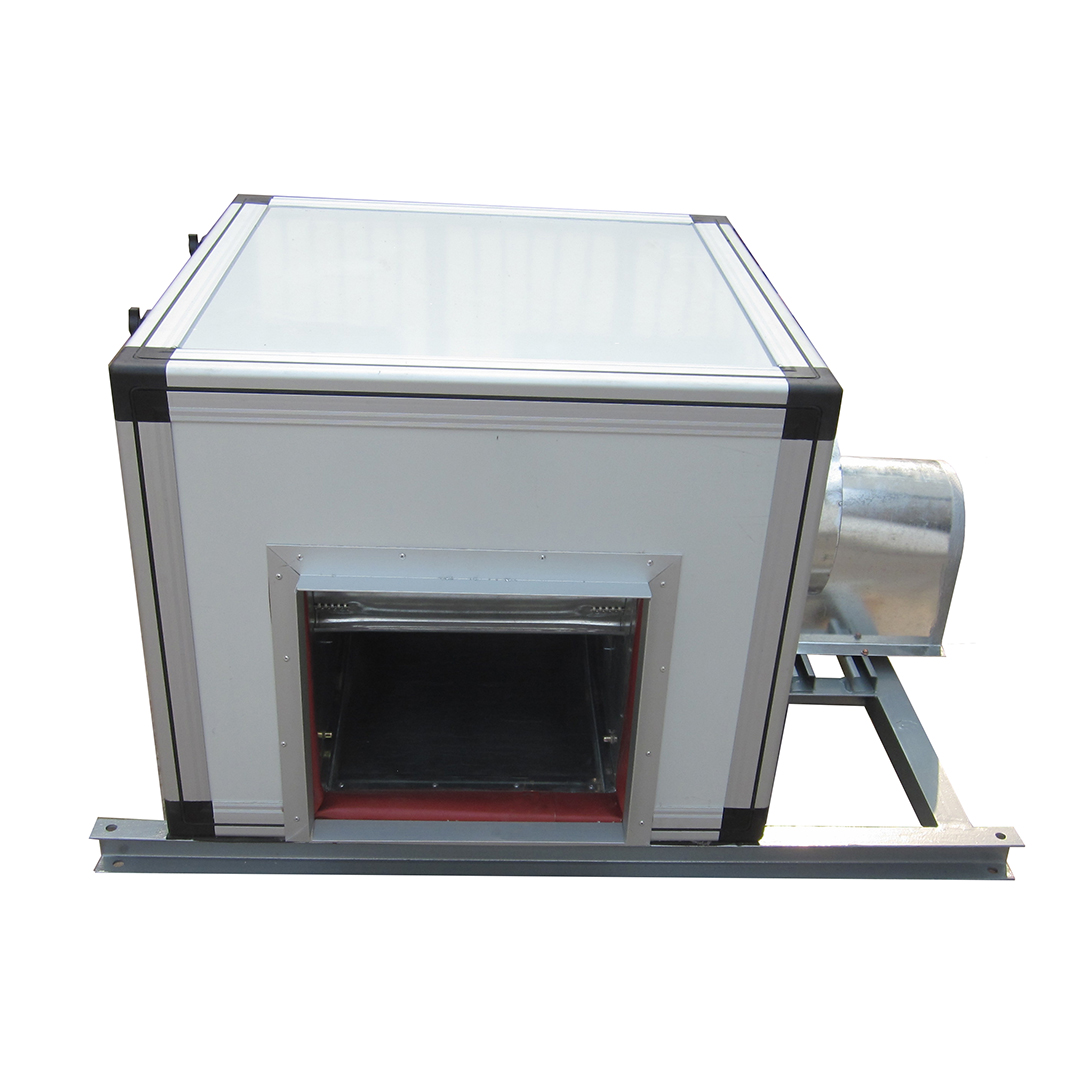

SDZ柜式离心风机(英制)
结构特点:
Structural features:
风机采用铝合金框,架迷宫式密封,双层彩色面板,厚度30mm(低噪音型);
The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal. The thickness of panel is 30mm.
配前倾叶轮,风量大噪音低;
The impeller is designed for forward impeller, so it has large volume.
可以制作防腐、防爆或消防系列。
lt can be used to antisepticising and anti-exploding and fire protection.

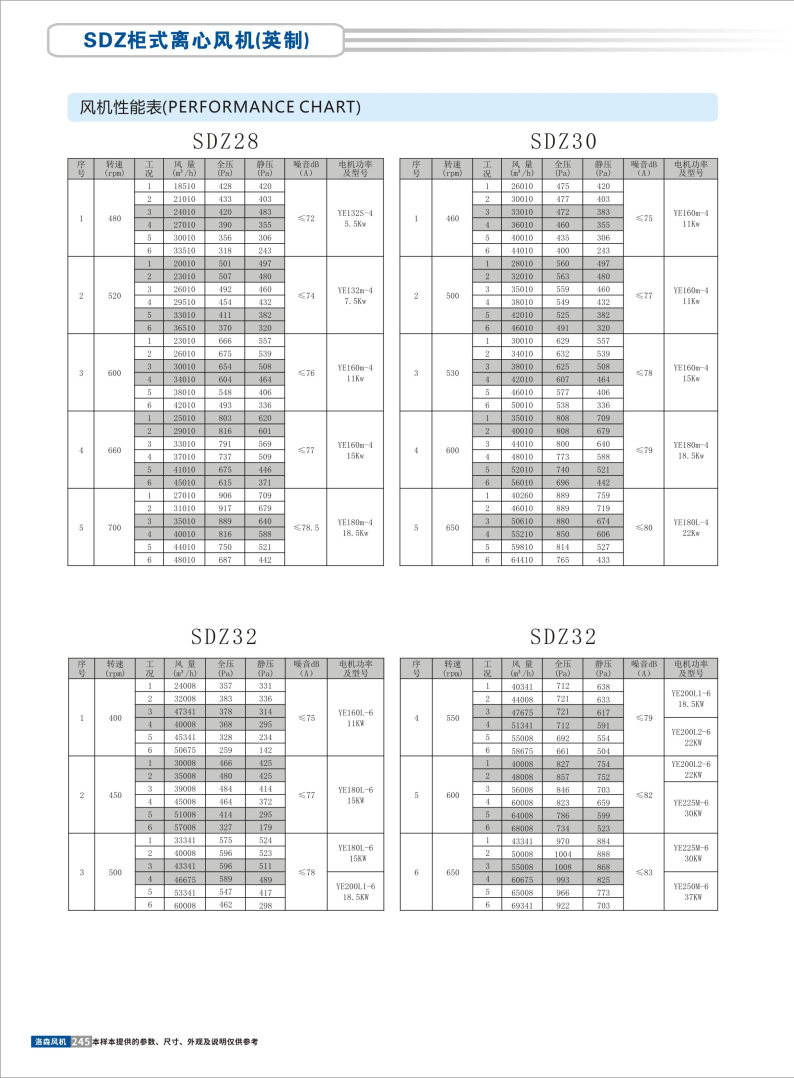

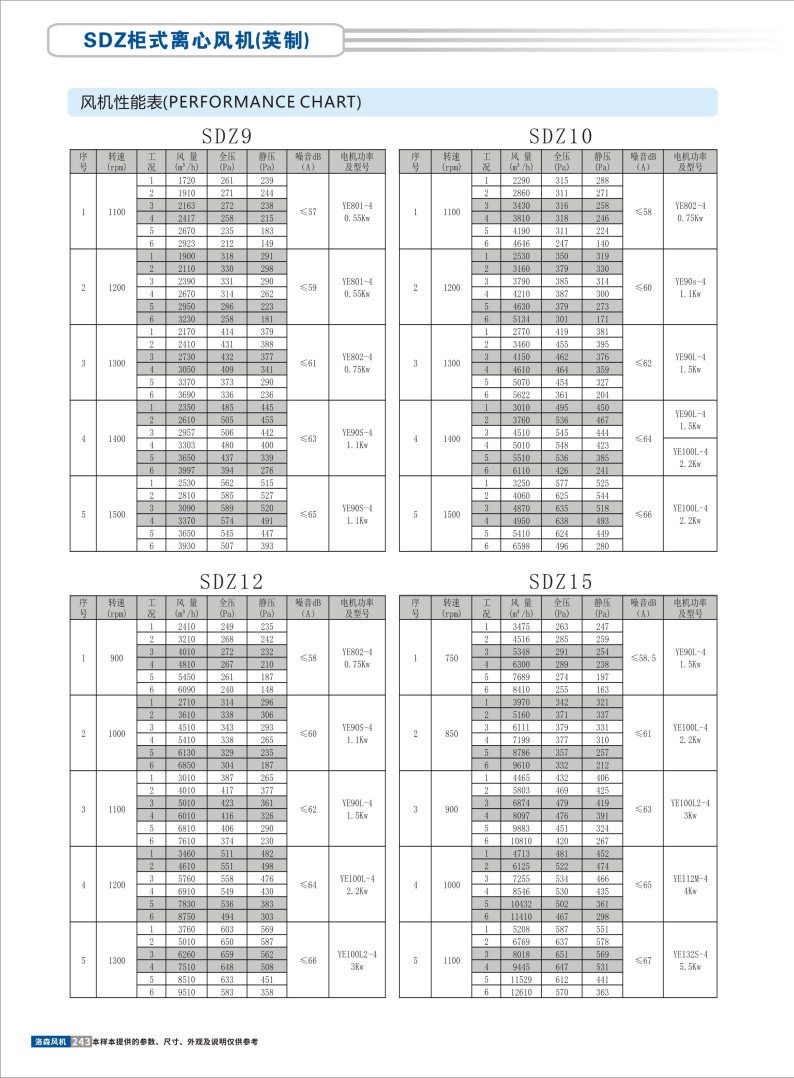

型号范围:NO.9-40共14种机号
Model range: no. 9-40, 14numbers in total
风量范围:1720-103345m3/h
Air volume range: 1720-103345m3/h
全压范围:212-1008Pa
Total pressure range: 212-1008Pa
适合用途:适用于大楼、宾馆、工厂等场所通风换气。
Application: It is used to ventilate in hotel, building and factory etc.
